4260

$10

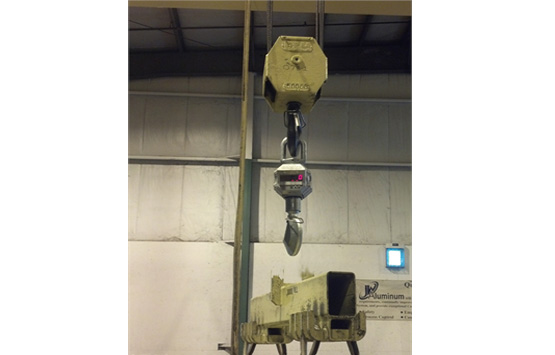

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260IS Intrinsically Safe Crane Scale has an established reputation as the industry standard in overhead weighing.

Click For other Products like Steel Scales

Categories: ,
  1. Features
    • Crane unit with 5-digit, 1.2 in (30 mm) LED display
    • Top lifting eye or shackle, bottom thrust bearing swivel hook
    • 12 volt rechargeable battery and universal 115/230 VAC, 50/60 Hz battery charger (NA plug standard)
    • NEMA 4 IP66 rated, not safe for emersion but able to be used outdoors
    • Intrinsically Safe configurations available
    • Optional approvals: FM cFM and ATEX
  2. Specifications

    Accuracy:
    ± 0.1% +1 d of applied load

    Resolution:
    3000 to 5000 d standard (Up to 10,000 d available)

    Enclosure:
    NEMA Tpye 4, IP66 marine grade 356 alloy anodized cast aluminum

    Lifting Eye, Shackle & Hook:
    Crosby® or equal with 360° thrust-bearing swivel hook

    Design Overload:
    200% Safe / 500% Ultimate (except where noted)

    Functions:
    Power: Turns Unit ON or OFF, Zero: Zeros applied load up to 100% of capacity (limited range in NTEP configuration),
    Tare: Tares applied load and displays weight in Net mode, F1: Programmable as TEST, UNITS, NET/GROSS, TOTAL & PEAK HOLD

    Display:
    Five digit, 1.2 in (30 mm) LED with programmable brightness control

    Displayable Units:
    Pounds or kilograms selectable

    Annunciators:
    COZ, Net, Gross, Total, Peak, Low Battery, lb/kg, Motion, Setpoints

    Power:
    12 Volt rechargeable battery. 115/230 VAC battery charger is included

    Operating Time:
    Up to 200 hours between charging with typical use, less with optional RF Modem
    Link

    Operating Temperature:
    -4°F to 140°F (-20°C to 60°C)

    Auto-Off Mode:
    Select for 15, 30, 45 minutes, 1 hour or Off

    Auto Sleep Mode:
    Power down during non-use and power up with weight change or any key press

    Service Counters:
    Counts number of lifts over percentage of capacity and lifts over capacity

    Calibration:
    Digital

    Filtering:
    OFF, LO, HI-1, HI-2 selectable

    Warranty:
    One-year limited

    Approvals:
    NTEP CC 89-090 – 500 lb-2,000 lb (250 kg-1,000 kg)
    NTEP CC 89-090A1 – 5,000 lb-70,000 lb (2,000 kg-35,000 kg)
